Model

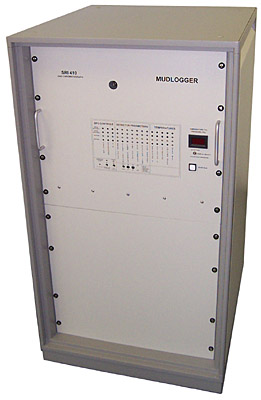

410 Rackmount Gas Chromatograph
|
42
|
 |
|
| The Model 410 is a compact, rack mountable GC which offers the performance of a full-sized laboratory gas chromatograph. Excellent for industrial applications, or any facility without benchtop workspace, the Model 410 mounts in a shelf-equipped 19-inch rack. It can mount multiple detectors, a single On-column, Heated Flash Vaporization, Split/Splitless or PTV injector, and a gas sampling valve. The column oven will accommodate 4-inch capillary or packed columns. All gases are controlled by electronic pressure controllers (EPC), and the carrier gas pressure is programmable. With the built-in PeakSimple data system, all that is needed to connect the GC to your computer is a serial or USB cable, depending on the data system option selected. It features the familiar, easy-to-read SRI display panel, and mounts on your existing sliding shelf for accessibility. |
Model 410 chassis; ambient to 400°C column oven; On-column injector carrier EPC; single channel PeakSimple data system; "at-a-glance" display of temperatures, pressures, voltages, and detector parameters; operator's manual; accessory kit; heavy duty reusable shipping container. To completely configure a Model 410 GC, most users will need to specify one or more detectors, columns, and an injector upgrade (see the injector types listed in the previous paragraph). Some users may also need a Gas Line Installation Kit (see page 76) for each gas required (helium, hydrogen, nitrogen, etc.). This chassis does not include a shelf-equipped rack.
| 0410-1000 | Model 410 chassis with 1 channel USB PeakSimple data system |
£7,720.00
|
|||
|
0410-6000
|
Model 410 chassis with 6 channel USB PeakSimple data system |
£8,904.00
|
|||
|
VOLTAGE:
for 220VAC, use part number 0410-1000-2 or 0410-6000-2
|
|||||
